Aluminum Motorway Stud Lights With Shank R1

Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank

Share With:
Description
Inquiry
Description:

Motorway Stud Lights R1 Features:



•High brightness America brand led light with 100000 hours of working time.

•USA brand solar panel. 22% high conversion rate. Fast charge rate.

•Japan brand casting Al material. Motorway Stud Lights bears more pressure.

•Most quality Epoxy resin glue to fix the Motorway Stud Lights, making sure of solar power charge.

•Philips PC board, safe and stable. Long-time warranty for Motorway Stud Lights.

•The leader of Motorway Stud Lights. Load capacity:>30T(can be installed in the middle of the road)

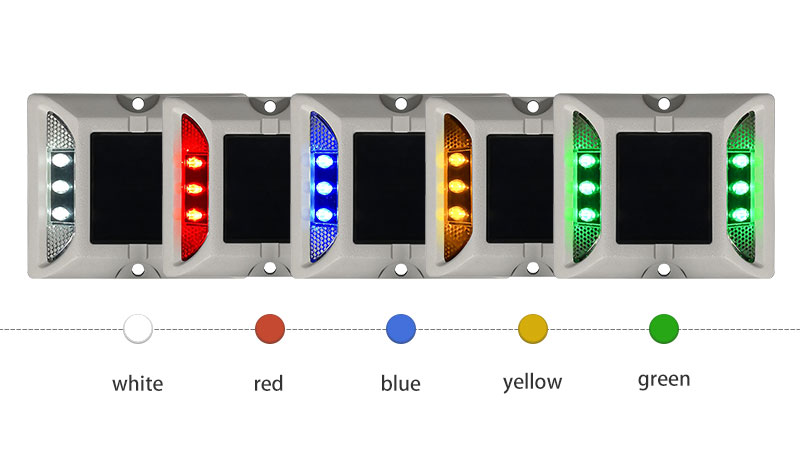

Aluminum Motorway Stud Lights Color
Five colors for chioce: White, Amber, Red, Blue, Green



Aluminum Motorway Stud Lights Parameters:



Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Battery: NI-MH 1.2V/600mah(high-temperature resistance, made in China);
Lithium Battery 3.2V/500MA(made in Japan);
Supercapacitor 2.3V/120F(made in Korea)
LED: Ultra-bright diameter 5mm(4pcs or 6pcs)
Shank: With shank or Without shank
Working model: Blinking or Constant(charging at daytime and working automatically at night)
Load Bearing: More Than 30 Tons
Visual distance: > 800m
Size: L125*W107*H25+55mm  (L4.92″*W4.21″*H0.98″+2.17″)
Package: (without spike): 2pcs/box; 60pcs/ctn; Weight: 28kgs; Carton size: 67.5*28*20cm
(2pcs/box; 60pcs/ctn; Weight: 61.73bs; Carton size: 26.57″*11.02″*7.87″)
(with spike):1pcs/box; 45pcs/ctn; Weight: 30kgs; Carton size: 66.5*44*28cm
(1pcs/box; 45pcs/ctn; Weight: 66.13bs; Carton size: 26.18″*17.32″*11.02″)



Aluminum Motorway Stud Lights
Aluminum Motorway Stud Lights

Aluminum Motorway Stud Lights R1 Application of Aluminum Motorway Stud Lights R1:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road



How to install Aluminum Motorway Stud Lights with shank R1:



1. Carefully mark the distance between the placement of the Motorway Stud Lights. To prevent adverse effects on the ground, use appropriate tools, such as core drills, which have a diameter of 35mm and a depth of 55mm.
2. Remove all debris from the mounting hole.
3. Pour epoxy resin into the hole according to the manufacturer’s instructions.
Make sure that the mounting holes are straight. Make sure that the mounting hole is large enough to allow epoxy resin to surround the Motorway Stud Lights.
4. Adjust the lighting surface of the Motorway Stud Lights to the desired viewing angle.
5. Make sure that the epoxy resin adheres evenly to the mounting hole and the Motorway Stud Lights. Make sure that the bottom of the Motorway Stud Lights is securely mounted on the mounting surface to ensure that zero “surface floating” occurs. (Space between the installation sign and the bottom of the Motorway Stud Lights).
6. After curing the LED Motorway Stud Lights for 6-8 hours, remove the installation of the isolation facility.
